GGM series orbital motor is a hydraulic motor with a disk distribution orbital motor.It has the characteristics of high working pressure, high working efficiency, and long working life.
| Max. Displacement cm3/rev[in3/rev] | 11.47 [0.700] |
| Max. Speed [RPM] | 5000 |
| Max. Torque 1000PSI in.-Ibs[kg-cm] | 111[128] |
| Max. Output kW[HP] | 64[85.8] |
| Max. Pressure Drop bar[PSI] | cont.: 138 [2000] int.: 172.58 [2500] |
| Max. Oil Flow lpm[GPM] | 56.7 [15] |
| Pressure fluid | Mineral based - HLP (DIN 51524) or HM (ISO 6743/4) |
| Temperature Range ℃[℉] | -40÷140[-40÷284] |
| Optimal Viscosity Range mm2/s[SUS] | 20 ÷ 75[98 ÷ 347] |
| Filtration | ISO code: 20/16 (Min: recommended fluid filtration of 25 microns) |
| Type | GGM3.6 | GGM6.1 | GGM7.4 | GGM9.5 | GGM11.5 |
| Displacement in³/rev [cm³/rev] | 0.218(3.57) | 0.372(6.094) | 0.450(7.374) | 0.580(9.50) | 0.700(11.471) |
| Max.Rated RPM | 5000 | 5000 | 5000 | 5000 | 5000 |
| Rated Flow Per 1000 RPM (Nominal) | 0.95GPM(3.6 L/min) | 1.61GPM(6.1 L/min) | 1.95GPM(7.4 L/min) | 2.51GPM(9.5 L/min) | 3.03GPM(11.5 L/min) |
Max.Continuous Pressure Max.Intermittent Pressure | 2000PSI(138.0bar) | 2000PSI(138.0bar) | 2000PSI (138.0bar) | 2000PSI(138.0bar) | 1500PSI (103.5bar) |
| 2500PSI(172.5bar) | 2500PSI(172.5bar) | 2500PSI (172.5bar) | 2500PSI(172.5bar) | 2000PSI (138.0bar) | |
| Output Torque Per 1000 PSI (69.0 bar) | 35in.-lbs | 59in.-lbs | 72in.-lbs. | 92 in.-lbs. | 111 in.-lbs |
(40kg-cm) | (68 kg-cm) | (83 kg-cm) | (107 kg-cm) | (128 kg-cm) | |
| Weight | 2.8 pounds(1.25kg) | 3.0 pounds(1.36kg) | 3.1 pounds(1.41kg) | 3.3 pounds(1.50kg) | 0.5 pounds(1.59kg) |
| Shaft Side Load** | 170 lbs(77.0kg) | 130 Ibs. (59.0kg) | 110 Ibs. (50.0kg) | 70 Ibs. (31.7kg) | 30 lbs. (13.5kg) |
| No. | GRH Series | DF | ET | CL | WD | PK | MS | BV |
| 1 | GM | OMM | J | 129 | MM/MLHM | BGM | ||
| 2 | GP | OMP | MP/MLHP | BG | ||||
| 3 | GPH | H | 101 | HP | BH | |||
| 4 | GP-H | OMPX | ||||||
| 5 | GR | OMR | RS | MR | BR | |||
| 6 | GRS | S | 103 | DH/DS | HR | BS | ||
| 7 | GR-H | OMRX | ||||||
| 8 | GH | OMH | MH | |||||
| 9 | GS | OMS | MLHS | HR | ||||
| 10 | GSS | OMSS | MLHSS | |||||
| 11 | GT | OMT | MLHT | HT | ||||
| 12 | GTS | OMTS | MLHTS | |||||
| 13 | GV | OMV | 10000 SERIES | MLHV | ||||
| 14 | GVS | OMVS | MLHVS | |||||
| 15 | GFA | TE | ||||||
| 16 | GFB | TB | ||||||
| 17 | GFD | TG | ||||||
| 18 | GFE | TGK | ||||||
| 19 | GFF | TF | ||||||
| 20 | GFK | TK | ||||||
| 21 | GKA | 2000 SERIES | 104/105/106 | |||||
| 22 | GKB | 4000 SERIES | 109/110/111 | |||||
| 23 | GKC | 6000 SERIES | 112/113/114 | |||||
| 24 | GGM | MGG | ||||||
| 25 | GWD | DELTA SERIES | RE 500/501 CE | HW | ||||
| 26 | GWH | HB | ||||||
| 27 | GBD | BK913/915 | ||||||
| 28 | GKA-BK10 | DR | ||||||
| 30 | GFD-BK | BG |

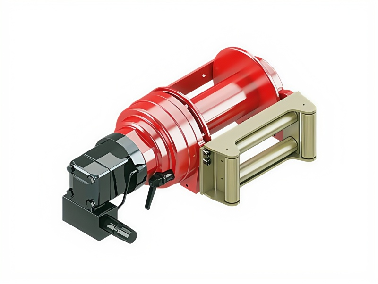

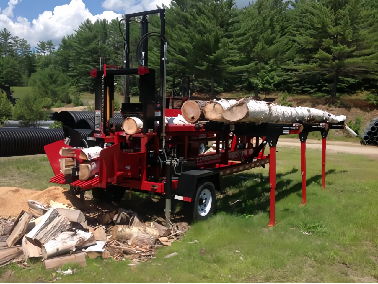

GRH GGM series obrital motors are widely used in harvestor，splitter and aerial winch.
