As a strategic supplier of many well-known AWP manufacturers, GRH can not only provide the main power source for the system, but also provide functions such as lifting function, walking function, steering function, emergent start, no-load start, etc.

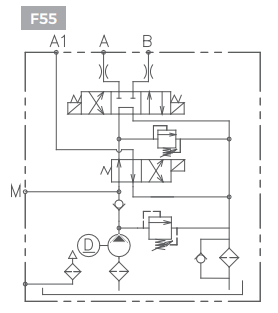

1. High-pressure gear oil pump / DC motor / Double acting
2. Internal filter element
| Model | DC-F55-1.6/E-1.2/24/20-4PH-C |
| Voltage | DC 24V |
| Power | 1.2kW |
| Speed | 3800~4400rpm |
| Disp. | 1.6 cc/r |
| Pressure | 15.5 MPa |
| Volume | 4L |

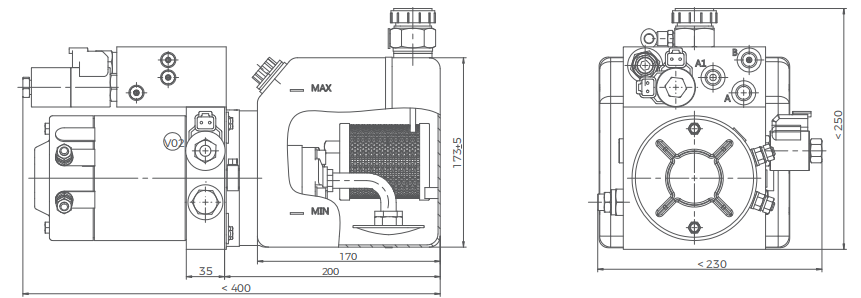

| Size | A, B, A1, M: G1/4 |
GRH aerial working platform power packs 5 are widely used in aerial work platform and automobile tail gate.
