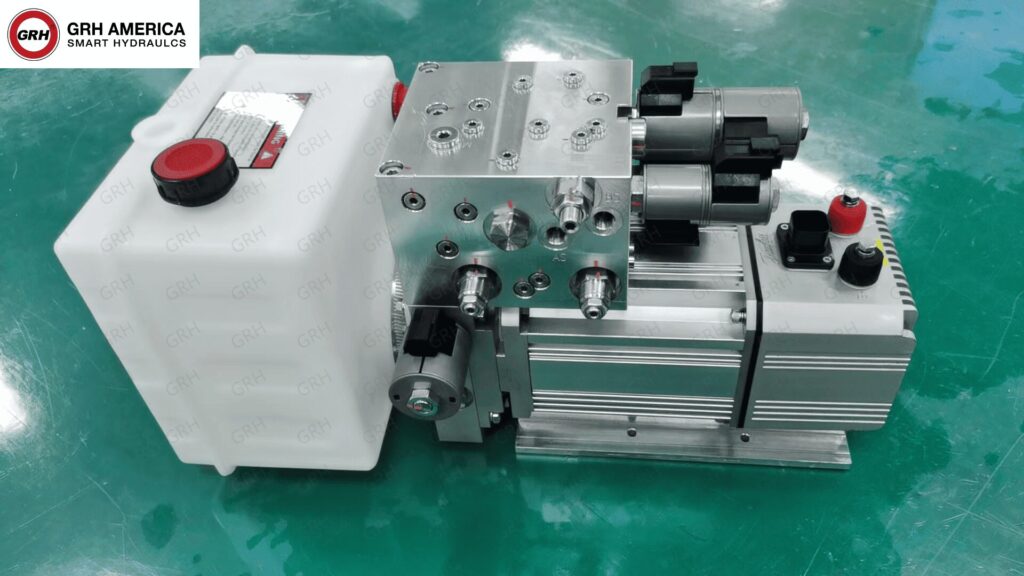

Guorui launches new product: Permanent Magnet Synchronous Hydraulic Drive Integrated Power Unit

This product features:
Structural Integration: Combines a high-efficiency permanent magnet synchronous motor, hydraulic pump with wide speed range, hydraulic oil tank, relief valve, check valve, solenoid directional valve, return filter, and air breather.
Functional Integration: Includes hydraulic steering control circuits, hydraulic lifting control circuits, and hydraulic drive travel control circuits.
Key Advantages: Compact and rational design, high energy efficiency, CAN bus control, easy installation/maintenance. Widely used in self-propelled aerial work platforms.

Technical Specifications:
Permanent Magnet Synchronous Motor: 24–48 VDC, 1.5–5 kW, IP67, S2 duty ≥15 min.
Hydraulic Pump Displacement Range: 0.8–5.0 cc.
Rated Working Pressure: 21 MPa; Peak Pressure: 25 MPa.
Rated Speed: 3,000 rpm; Speed Range: 600–4,500 rpm.
Operating Temperature Range: -40°C to 120°C.
Oil Tank Capacity Range: 4–28 L.
